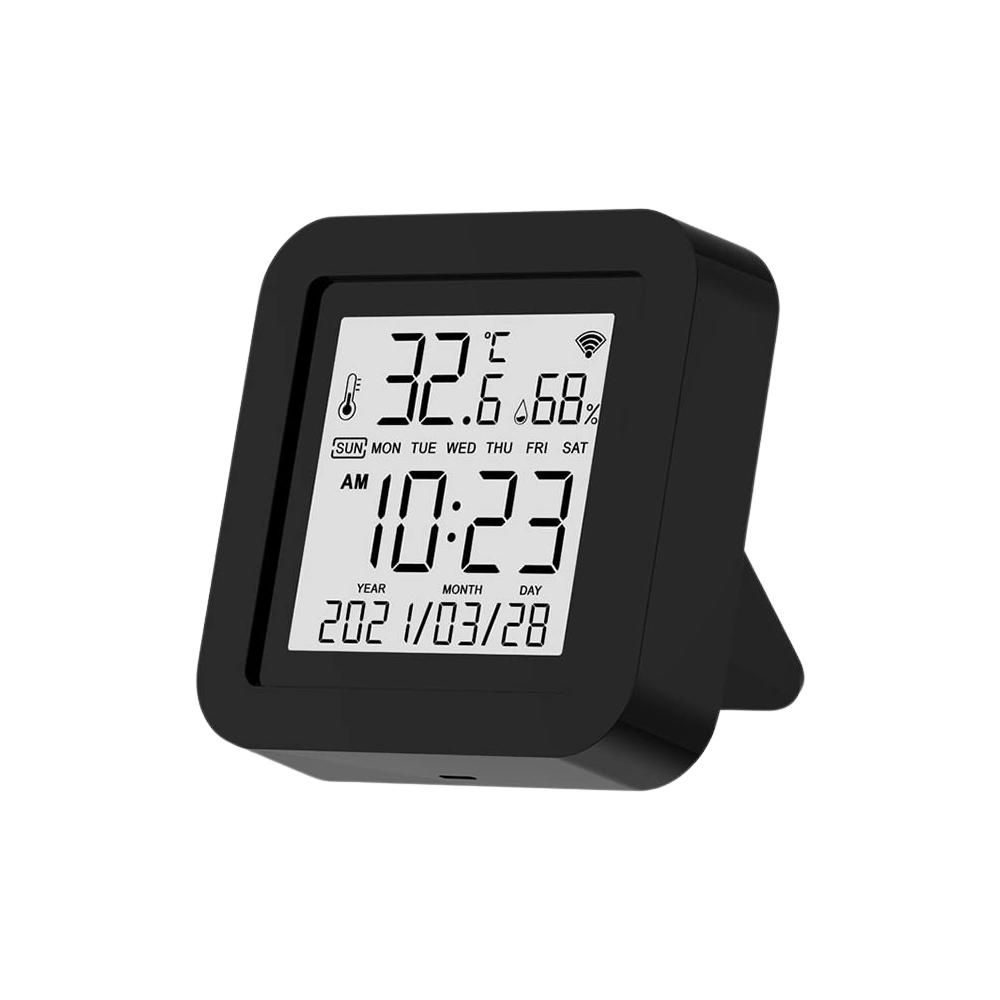

IR Blaster w/ Analog Screen, Temp & Humidity Sensor (WiFi)
A Wi-Fi IR blaster with integrated temperature and humidity sensors and an analog-style display. Transmits IR commands to legacy devices while simultaneously reporting real-time environmental data for automation logic.
Protocol: Wi-Fi 2.4 GHz · Type: Wi-Fi IR Blaster with Environmental Sensor · SRP: ₹4,750
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A Wi-Fi IR blaster with integrated temperature and humidity sensors and an analog-style display. Transmits IR commands to legacy devices while simultaneously reporting real-time environmental data for automation logic.
Connects to your 2.4 GHz Wi-Fi network. Sensor data can be used as automation triggers — for example, activating an air conditioner when temperature exceeds a threshold.
Specifications
| Specification | Value |
|---|---|
| Recommended Load | IR-controlled devices (line-of-sight) |
| Installation | Indoor, line-of-sight to IR devices |
| Compatibility | Compatible smart home apps and automation platforms |
| Power Input | DC 5V/1A (Micro USB, no adapter included) |
| Infrared Frequency | 38 kHz |
| IR Control Distance | ≤10m |
| LED Indicator | Blue |
| Connection | Wi-Fi 2.4GHz |
| Temperature Measurement Range | 0°C to +60°C |
| Temperature Accuracy | ±1°C |
| Humidity Measurement Range | 0%–99% RH |
| Humidity Accuracy | ±5% RH |
| Dimensions | 65 × 65 × 17 mm |
Setup
Network
- Connect to 2.4GHz WiFi (5GHz not supported).
- Use the Smartify or Tuya Smart app for initial pairing.
Adding Devices
- In the app, select the IR blaster.
- Add a new device → choose the appliance type (AC, TV, Fan, etc.).
- Point the IR blaster at the appliance and follow the learning/preset instructions.
AC Control (with Temp/Humidity Sensor)
The IR Blaster w/ Analog Screen includes a built-in temperature and humidity display:
- Use automations to trigger AC on/off based on room temperature.
- Integrates with Home Assistant via local Tuya or cloud Tuya integration.
Placement
- Place in line-of-sight of target devices.
- Range: up to 8m in open space.
- Avoid placing behind glass or thick obstacles.
Ordering
| SRP (incl. GST) | ₹4,750 |
| GST Rate | 18% |
| HSN Code | 85437099 |
