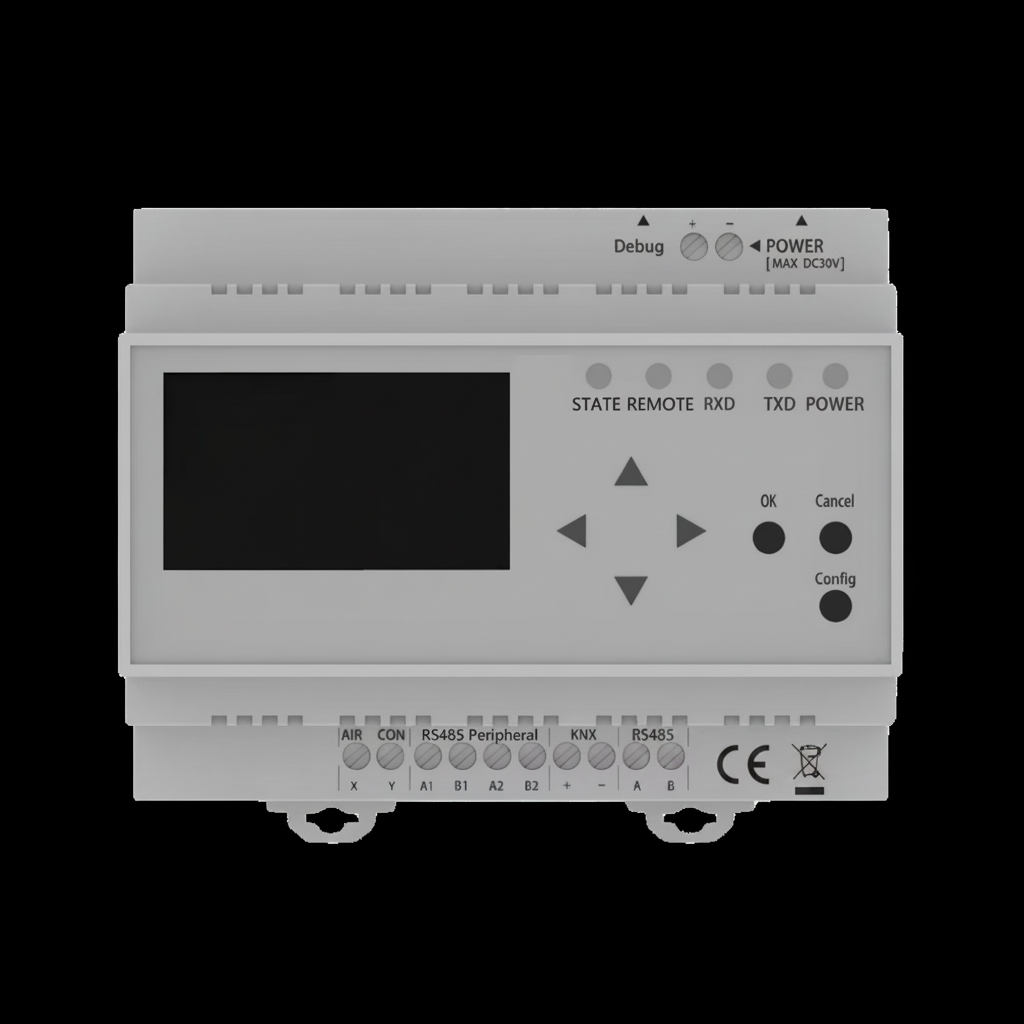

Zigbee VRV Gateway
A dedicated gateway that integrates VRV/VRF HVAC systems into a Zigbee-based smart automation ecosystem. Connects to the VRV/VRF outdoor unit via LAN cable and communicates wirelessly with a Zigbee gateway.
Protocol: Zigbee 3.0 · Type: VRV/VRF to Zigbee Integration Gateway · SRP: ₹55,000
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A dedicated gateway that integrates VRV/VRF HVAC systems into a Zigbee-based smart automation ecosystem. Connects to the VRV/VRF outdoor unit via LAN cable and communicates wirelessly with a Zigbee gateway.
Enables remote control, real-time monitoring, and automation of the entire VRV/VRF air conditioning system through the Zigbee automation platform — without modifying the HVAC hardware.
Specifications
| Specification | Value |
|---|---|
| Recommended Load | Compatible VRV/VRF systems |
| Installation | Indoor, wired LAN connection to outdoor unit |
| Compatibility | Zigbee automation platforms |
| Communication Protocol | Zigbee |
| AC Interface | X, Y (VRF communication port) |
| Additional Ports | RS485 Peripheral (×2), KNS, RS485 |
| Power | External power adapter (do not connect 220V directly) |
| Compatible Brands | Daikin, Samsung, TCL, Gree, Toshiba, Panasonic, Hitachi, Hisense, York, Mitsubishi Electric, Mitsubishi Heavy Industries, AUX, LG, Trane, Midea, Carrier, Bosch, Haier, McQuay and more |
Setup
Wired Gateway
- Connect via Ethernet to your router or switch.
- Power via USB-C.
- Add the gateway in Home Assistant (Zigbee integration → EZSP or Zigbee2MQTT).
- Begin pairing Zigbee devices.
Matter Gateway (Convergia)
- Connect via Ethernet.
- Add to Apple Home, Google Home, or SmartThings using the Matter QR code on the device.
- All Zigbee child devices appear automatically in the Matter fabric.
VRV Gateway
Bridges Zigbee to VRV/VRF air conditioning systems (Daikin, Mitsubishi, etc.).
- Connect the RS-485 port to the VRV indoor unit or centralised controller.
- Configure address and baud rate per your VRV system documentation.
DALI Gateway
Bridges Zigbee to DALI-2 lighting systems.
- Connect DALI bus terminals to the DALI line.
- Each gateway supports up to 64 DALI addresses.
- Configure via Home Assistant DALI integration.
Ordering
| SRP (incl. GST) | ₹55,000 |
| GST Rate | 28% |
| HSN Code | 84159000 |
