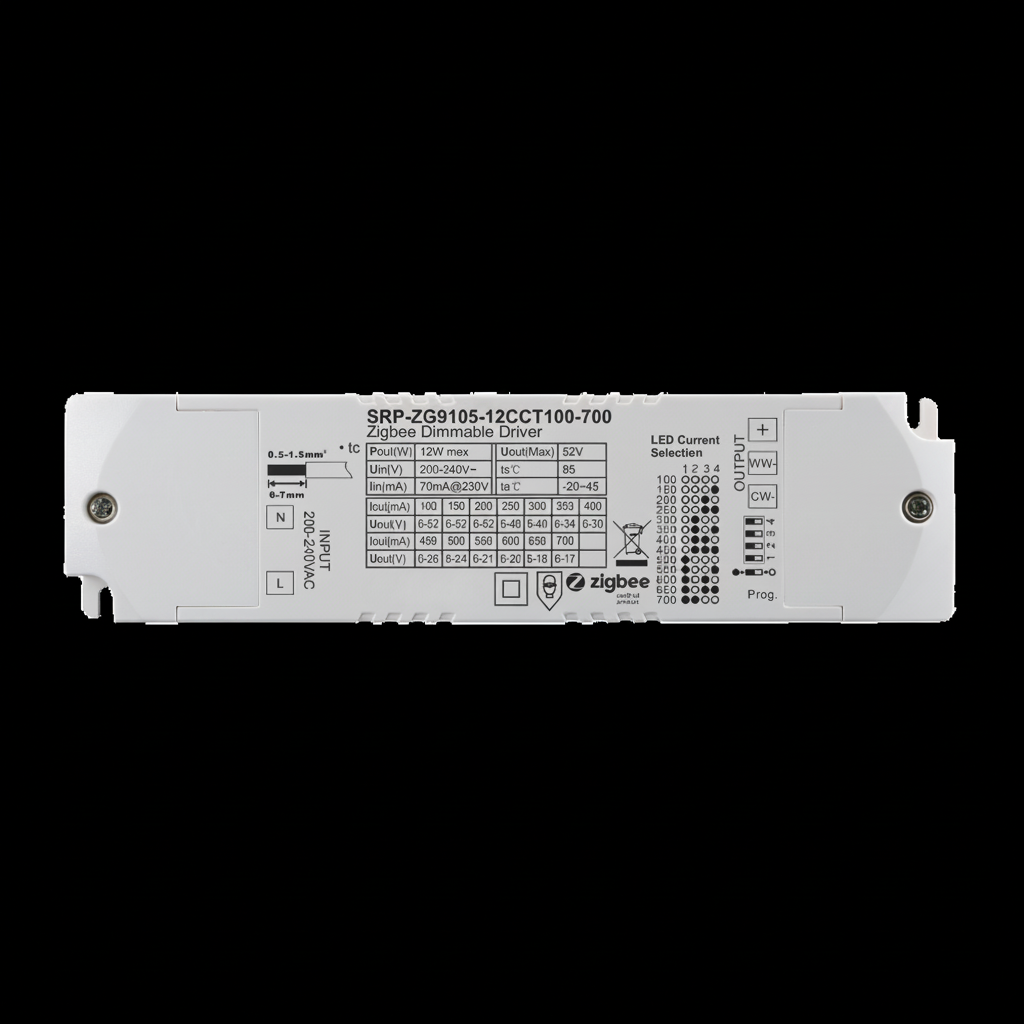

LED Controller (CC-CCT)
A constant current LED controller for CCT (tunable white) lighting fixtures, providing independent control of brightness and colour temperature across warm white and cool white channels.
.3eec3ea1.png)
Protocol: Compatible smart ecosystem · Type: Constant Current LED Controller · SRP: ₹8,247
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Not compatible with constant voltage LED strips. Constant current loads only.
Requires: Constant current LED loads matched to controller rated output current
Description
A constant current LED controller for CCT (tunable white) lighting fixtures, providing independent control of brightness and colour temperature across warm white and cool white channels.
Designed specifically for constant current LED loads. Not compatible with constant voltage LED strips. Suitable for panel or fixture-integrated installation.
Specifications
| Specification | Value |
|---|---|
| Channels | 2 (WW + CW) |
| Recommended Load | CCT constant current LED loads |
| Installation | Indoor panel or fixture-integrated |
| Compatibility | Compatible smart lighting ecosystems |
Wiring
CV RGB+CCT Controller
- R, G, B → respective colour channels of your LED strip
- WW, CW → warm white and cool white channels
- 12V / 24V → match your strip's voltage
- Maximum load: check product specifications per channel
CV CCT Controller
- WW, CW → warm and cool white channels
- Enables smooth colour temperature tuning from warm to cool white
Setup
- Wire the controller per the diagram above.
- Connect to power.
- Pair with your Zigbee coordinator.
- In Home Assistant, the light entity will expose colour temperature and brightness controls.
Tips
- Use a power supply rated at ≥1.2× the total LED strip wattage.
- Run separate power supplies for runs longer than 5m to avoid voltage drop.
Ordering
| SRP (incl. GST) | ₹8,247 |
| GST Rate | 18% |
| HSN Code | 85371010 |
