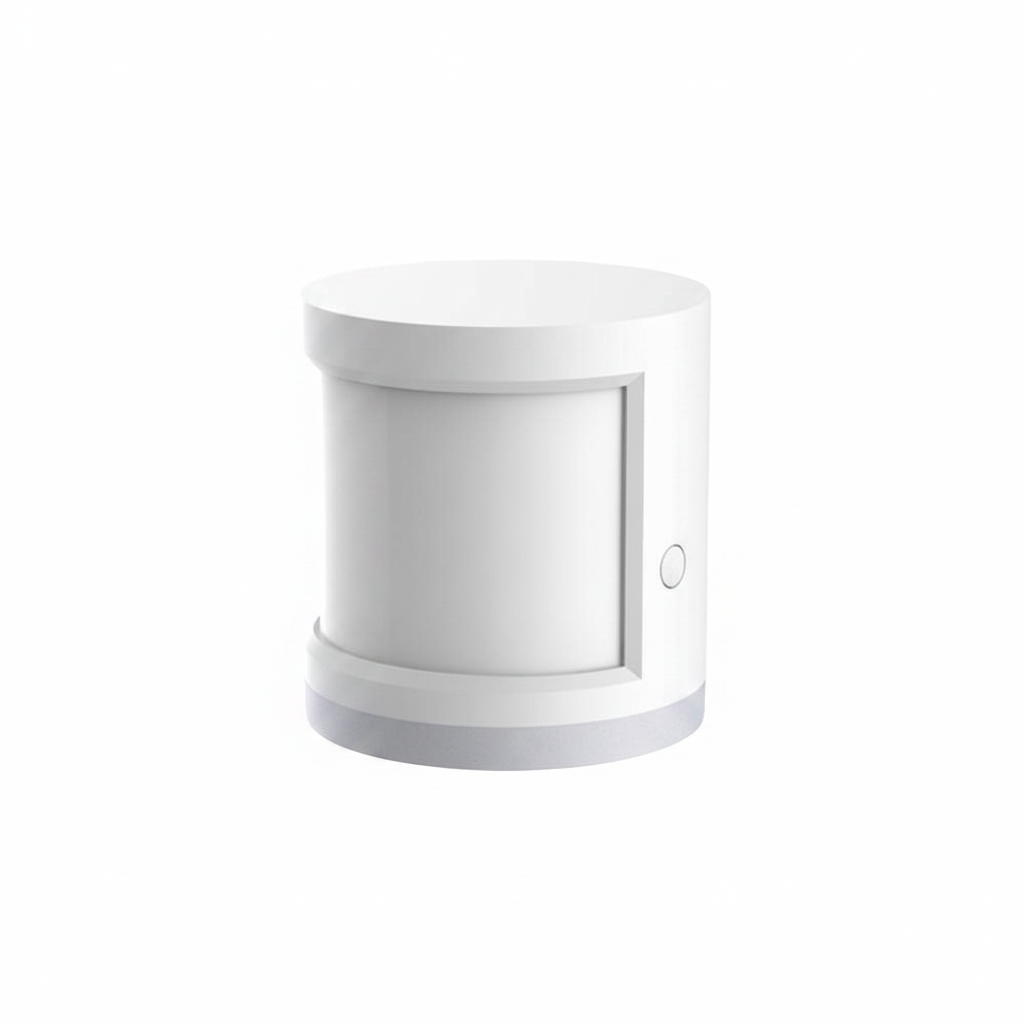

Zigbee Motion Sensor + LUX Sensor
A Zigbee 3.0 combined motion and ambient light sensor that reports both occupancy and LUX readings to a Zigbee gateway or compatible hub for automation and control logic.
Protocol: Zigbee 3.0 · Type: Motion + Ambient Light (LUX) Sensor · SRP: ₹4,250
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A Zigbee 3.0 combined motion and ambient light sensor that reports both occupancy and LUX readings to a Zigbee gateway or compatible hub for automation and control logic.
Enables intelligent automations based on both presence and light conditions — for example, activating lights only when motion is detected and ambient light is below a set threshold. Battery-powered with wall or ceiling mount.
Specifications
| Specification | Value |
|---|---|
| Installation | Wall or ceiling (adhesive or screws) |
| Compatibility | Compatible Zigbee gateways and automation platforms |
| Input Voltage | 3V |
| Battery | CR2450 (replaceable) |
| Low Battery Warning | Yes |
| Communication Protocol | Zigbee (IEEE 802.15.4) |
| Operating Frequency | 2.405–2.480 GHz |
| Max RF Power | +10 dBm |
| Data Transmission Rate | 250 Kbps |
| Antenna | PCB antenna, gain 1.08 dBi |
| Detection Range | 8m |
| Detection Angle | 120° |
| LED Indicator | Single white lamp |
| Operating Temperature | -10°C to +50°C |
| Dimensions | ø52 × 46 mm (±1mm) |
Placement & Setup
Motion Sensor
- Mount at 2–2.5m height, angled downward for best coverage.
- Avoid direct sunlight, HVAC vents, and heat sources to prevent false triggers.
- Detection angle: ~110°, range: ~7m.
mmWave Presence Sensor (USB & Ceiling)
- Designed for continuous presence detection — detects stationary occupants unlike PIR sensors.
- Ceiling mount: Install in the centre of the room, directly above the target zone.
- USB variant: Connect to a USB-A power adapter; position near the area to monitor.
- Configure sensitivity and detection zones in Home Assistant.
Contact Sensor
- Attach the main sensor to the door/window frame and the magnet to the moving panel.
- Align within 10mm for reliable open/close detection.
- Battery-powered; typical life 1–2 years.
Vibration Sensor
- Attach to surfaces you want to monitor (doors, windows, appliances).
- Sensitive to physical shock and movement.
- Tune sensitivity via coordinator to avoid false alarms from nearby vibrations.
Ordering
| SRP (incl. GST) | ₹4,250 |
| GST Rate | 18% |
| HSN Code | 85319000 |
