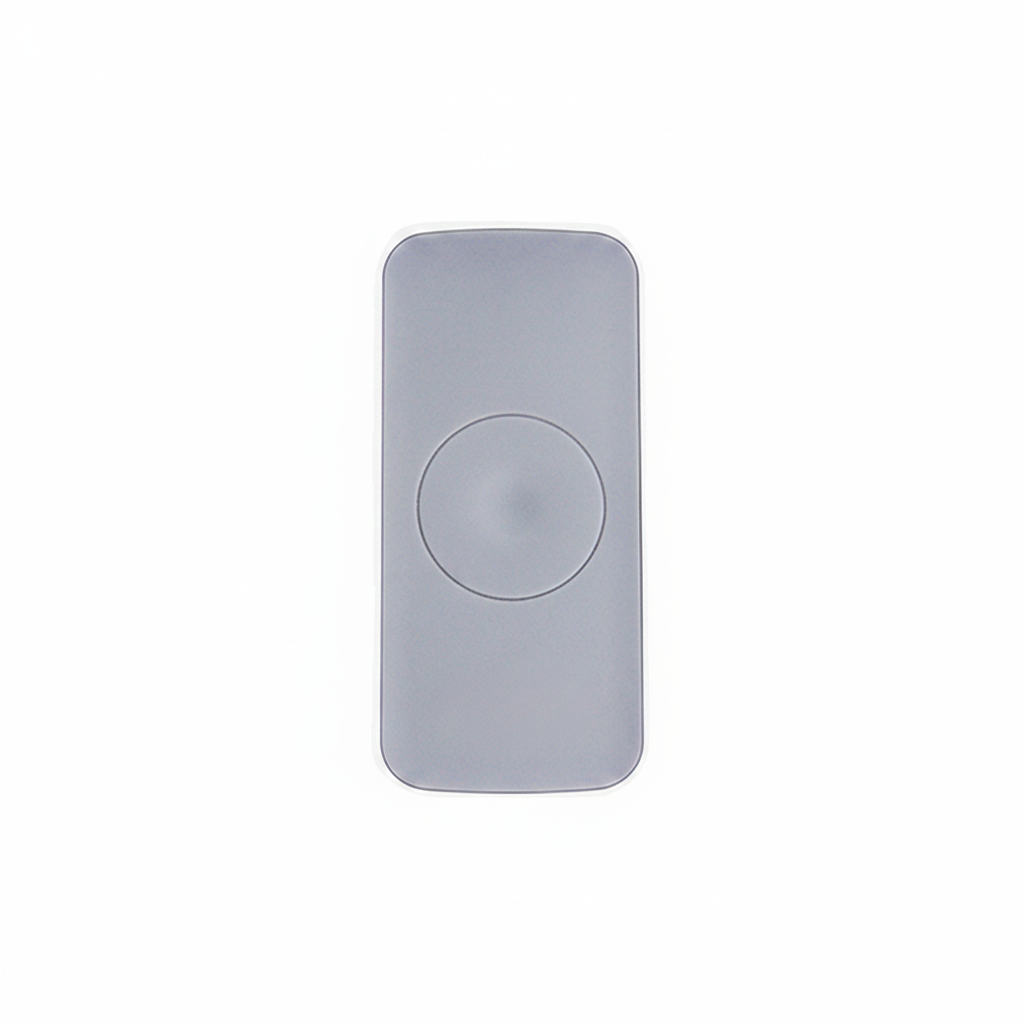

Zigbee Vibration Sensor
A Zigbee 3.0 vibration sensor that detects movement, vibration, and tampering on doors, windows, safes, cabinets, and other surfaces, reporting events to a Zigbee gateway or compatible hub.
Protocol: Zigbee 3.0 · Type: Vibration Detection Sensor · SRP: ₹3,750
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A Zigbee 3.0 vibration sensor that detects movement, vibration, and tampering on doors, windows, safes, cabinets, and other surfaces, reporting events to a Zigbee gateway or compatible hub.
Used for security monitoring, tamper alerts, and automation triggers. Battery-powered with surface mount installation.
Specifications
| Specification | Value |
|---|---|
| Installation | Surface mount (adhesive or screws) |
| Compatibility | Compatible Zigbee gateways and automation platforms |
| Working Voltage | DC 3V |
| Battery | 1.5V AAA × 2 |
| Standby Current | ≤10 µA |
| Alarm Current | ≤20 mA |
| Communication Protocol | Zigbee |
| Transmission Distance | 10–30m (indoor, unobstructed) |
| Data Update Frequency | Every 30 minutes |
| LED Indicator | Yes |
| Working Temperature | -10°C to +50°C |
| Working Humidity | ≤95% RH (non-condensing) |
Placement & Setup
Motion Sensor
- Mount at 2–2.5m height, angled downward for best coverage.
- Avoid direct sunlight, HVAC vents, and heat sources to prevent false triggers.
- Detection angle: ~110°, range: ~7m.
mmWave Presence Sensor (USB & Ceiling)
- Designed for continuous presence detection — detects stationary occupants unlike PIR sensors.
- Ceiling mount: Install in the centre of the room, directly above the target zone.
- USB variant: Connect to a USB-A power adapter; position near the area to monitor.
- Configure sensitivity and detection zones in Home Assistant.
Contact Sensor
- Attach the main sensor to the door/window frame and the magnet to the moving panel.
- Align within 10mm for reliable open/close detection.
- Battery-powered; typical life 1–2 years.
Vibration Sensor
- Attach to surfaces you want to monitor (doors, windows, appliances).
- Sensitive to physical shock and movement.
- Tune sensitivity via coordinator to avoid false alarms from nearby vibrations.
Ordering
| SRP (incl. GST) | ₹3,750 |
| GST Rate | 18% |
| HSN Code | 85319000 |
