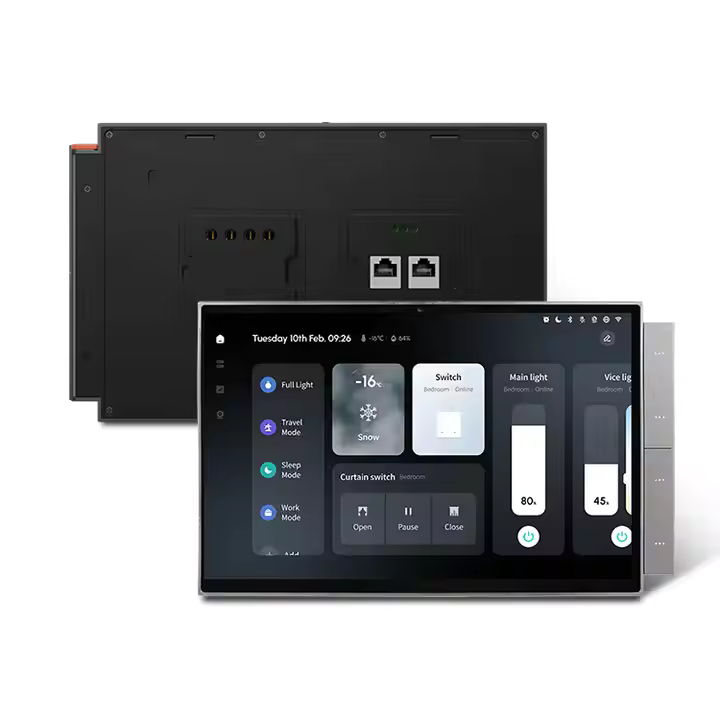

10" Touch Control Panel
A 10-inch wall-mounted smart home control panel with integrated Zigbee and Bluetooth gateways, supporting 128+ devices per protocol. Features a built-in HD camera, doorbell intercom, proximity wake sensor, and customizable control interface.
Protocol: Wi-Fi + Zigbee + Bluetooth · Type: Smart Home Touch Control Panel · SRP: ₹1,12,500
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A 10-inch wall-mounted smart home control panel with integrated Zigbee and Bluetooth gateways, supporting 128+ devices per protocol. Features a built-in HD camera, doorbell intercom, proximity wake sensor, and customizable control interface.
Supports Wi-Fi, Zigbee, and Bluetooth. Powerable via live/neutral wiring or USB-C. Manages lighting, scenes, security, and automation from a central touchscreen.
Specifications
| Specification | Value |
|---|---|
| Installation | Wall-mounted (live/neutral or USB-C powered) |
| Compatibility | Zigbee (128+ devices), Bluetooth/BLE/Sigmesh (128+ devices) |
| Input | 100–240V AC, 50/60Hz |
| Wireless Protocol | Wi-Fi, Bluetooth, Zigbee |
| Display | 1920 × 1200 FHD, 10.1-inch touch screen |
| Operating Temperature | 0°C to 40°C |
| Working Humidity | 5%–90% RH (non-condensing) |
| Size (without base) | 259 × 161 × 13 mm |
| Size (with base) | 259 × 161 × 37 mm |
Installation
Requirements
- Standard flush box compatible with panel dimensions
- Live, Neutral, Load wires
- Zigbee coordinator within range
Switch off the circuit breaker.
Mount the backplate/box to the wall.
Connect wiring per the channel labels on the panel.
Snap or screw the panel into position.
Restore power and pair with your Zigbee coordinator.
Configure scenes and buttons in the Smartify or Home Assistant UI.
Notes
- Touch panels must be grounded to avoid false triggers.
- Ensure the panel is flush against the wall for reliable capacitive touch detection.
Ordering
| SRP (incl. GST) | ₹1,12,500 |
| GST Rate | 18% |
| HSN Code | 85371000 |
