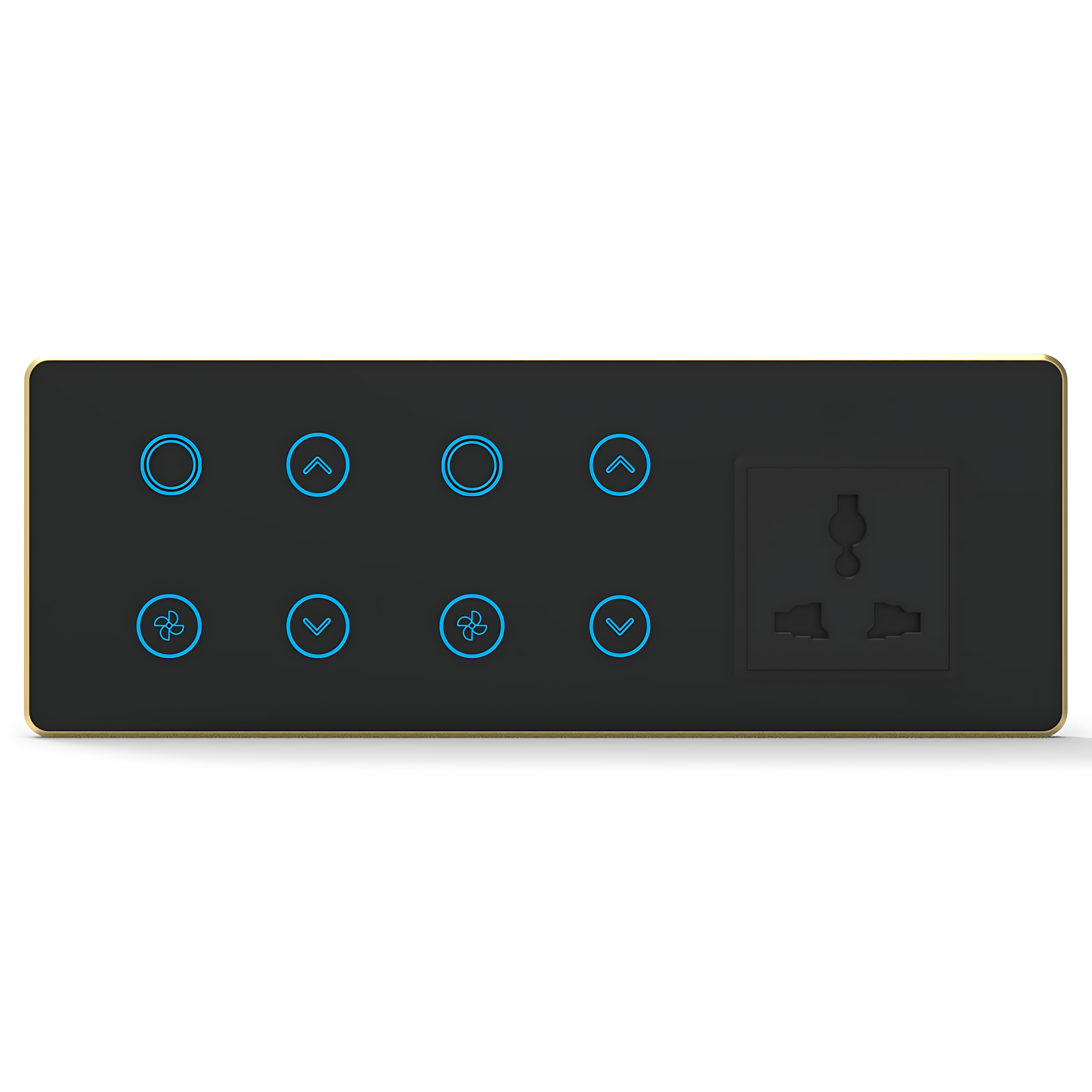

TOQ 8T+1F
An 8-button Zigbee touch panel with a dedicated fan control channel for ceiling fans up to 120W, combining multi-circuit load control with integrated fan management in a single wall panel.
Protocol: Zigbee 3.0 · Type: Zigbee Touch Control Panel with Fan Control · SRP: ₹21,460
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
An 8-button Zigbee touch panel with a dedicated fan control channel for ceiling fans up to 120W, combining multi-circuit load control with integrated fan management in a single wall panel.
Each of the 8 buttons is independently configurable for toggle or momentary operation. The fan channel operates separately for speed and on/off control. Available in white or black glass with silver, gold, or black bezel.
Specifications
| Specification | Value |
|---|---|
| Channels | 8 + 1 fan |
| Max Switching | 10A per button channel |
| Recommended Load | Up to 4A per button channel; fan up to 120W |
| Installation | Wall-mounted |
| Compatibility | Zigbee automation platforms |
Installation
Requirements
- Standard flush box compatible with panel dimensions
- Live, Neutral, Load wires
- Zigbee coordinator within range
Switch off the circuit breaker.
Mount the backplate/box to the wall.
Connect wiring per the channel labels on the panel.
Snap or screw the panel into position.
Restore power and pair with your Zigbee coordinator.
Configure scenes and buttons in the Smartify or Home Assistant UI.
Notes
- Touch panels must be grounded to avoid false triggers.
- Ensure the panel is flush against the wall for reliable capacitive touch detection.
Ordering
| SRP (incl. GST) | ₹21,460 |
| GST Rate | 18% |
| HSN Code | 85369090 |
