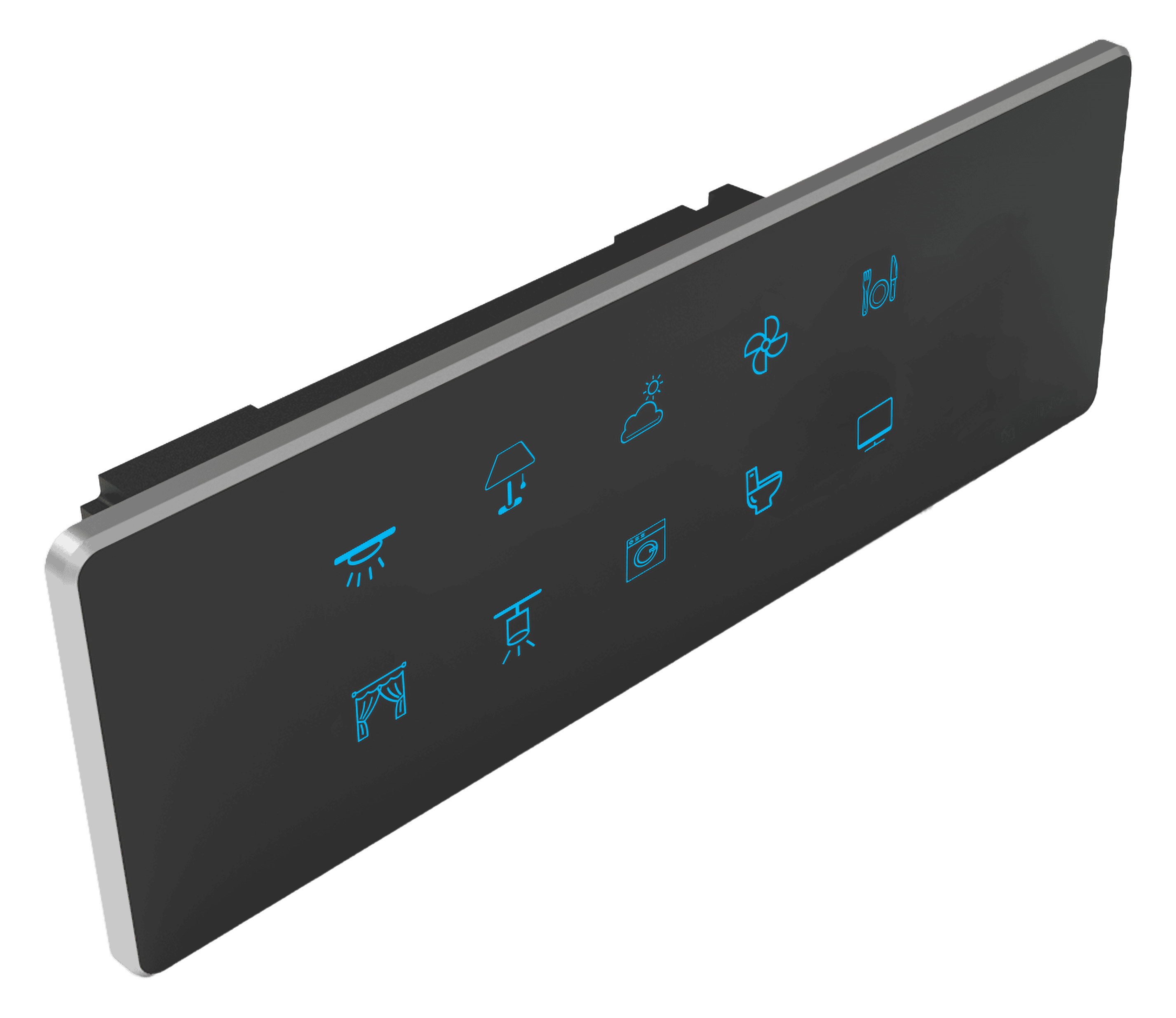

TOQ 10T
A 10-button Zigbee capacitive touch panel for comprehensive load switching and scene control across up to 10 independent channels in residential and commercial installations.
Protocol: Zigbee 3.0 · Type: Zigbee Touch Control Panel · SRP: ₹19,557
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A 10-button Zigbee capacitive touch panel for comprehensive load switching and scene control across up to 10 independent channels in residential and commercial installations.
Each button independently controls a load or triggers a scene. Configurable for toggle or momentary operation per button. Available in white or black glass with silver, gold, or black bezel and configurable backlight.
Specifications
| Specification | Value |
|---|---|
| Channels | 10 |
| Max Switching | 10A per channel |
| Recommended Load | Up to 4A per channel |
| Installation | Wall-mounted |
| Compatibility | Zigbee automation platforms |
Installation
Requirements
- Standard flush box compatible with panel dimensions
- Live, Neutral, Load wires
- Zigbee coordinator within range
Switch off the circuit breaker.
Mount the backplate/box to the wall.
Connect wiring per the channel labels on the panel.
Snap or screw the panel into position.
Restore power and pair with your Zigbee coordinator.
Configure scenes and buttons in the Smartify or Home Assistant UI.
Notes
- Touch panels must be grounded to avoid false triggers.
- Ensure the panel is flush against the wall for reliable capacitive touch detection.
Ordering
| SRP (incl. GST) | ₹19,557 |
| GST Rate | 18% |
| HSN Code | 85369090 |
TOQ 8T
An 8-button Zigbee capacitive touch panel for load switching, scene triggering, and dimming control across up to 8 independent channels.
TOQ 8T+1F
An 8-button Zigbee touch panel with a dedicated fan control channel for ceiling fans up to 120W, combining multi-circuit load control with integrated fan management in a single wall panel.
