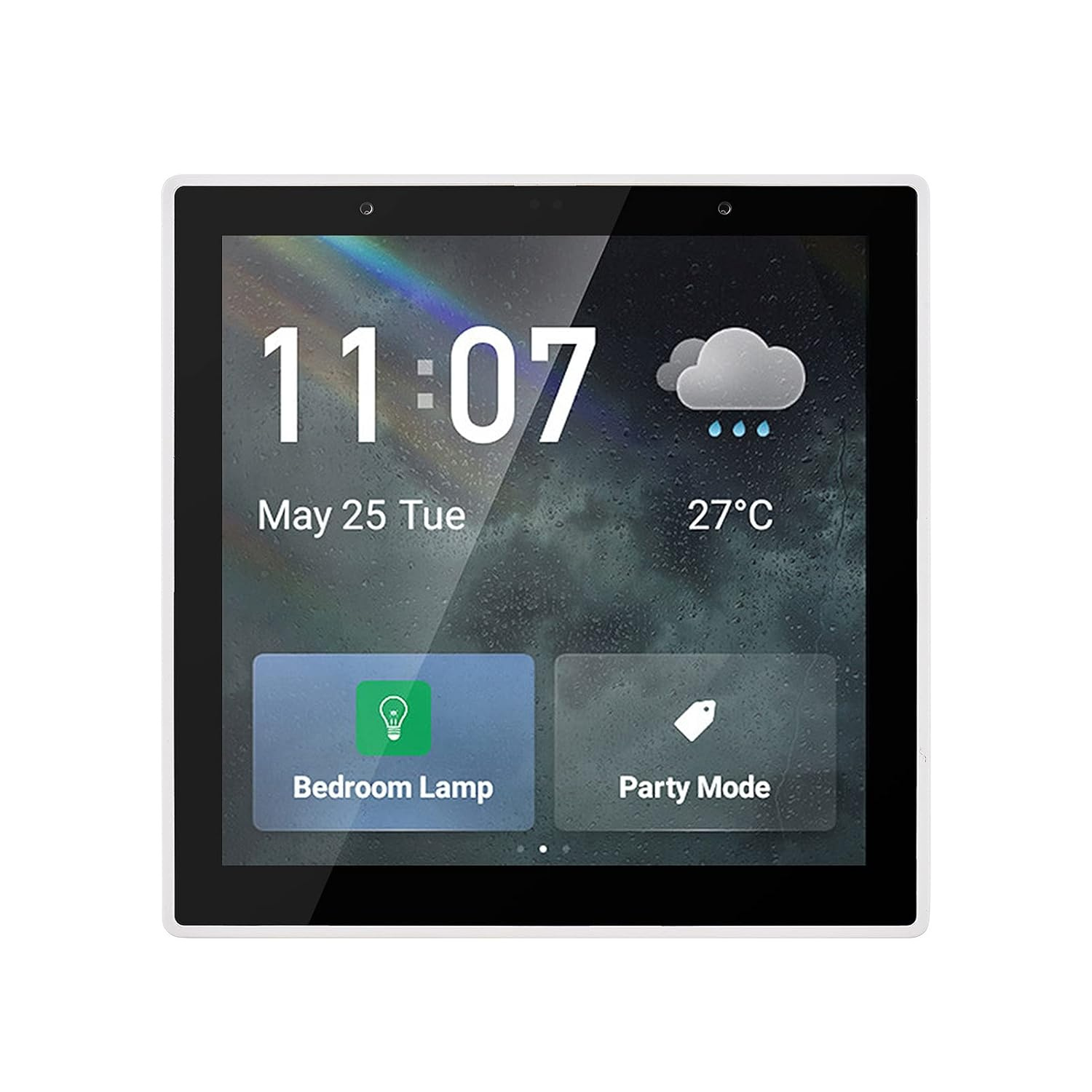

4" Touch Control Panel
A 4-inch wall-mounted smart home touch panel with an integrated Zigbee gateway, Wi-Fi connectivity, and built-in Alexa voice control. Provides centralized control of smart home devices, scenes, and automations.
Protocol: Wi-Fi + Zigbee (built-in gateway) · Type: Smart Home Touch Control Panel · SRP: ₹33,000
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A 4-inch wall-mounted smart home touch panel with an integrated Zigbee gateway, Wi-Fi connectivity, and built-in Alexa voice control. Provides centralized control of smart home devices, scenes, and automations.
Features automatic screen brightness adjustment and supports remote app-based control alongside local touchscreen interaction.
Specifications
| Specification | Value |
|---|---|
| Installation | Wall-mounted |
| Compatibility | Zigbee devices, Alexa voice control |
| Input | 100–240V AC, 50/60Hz |
| Rated Current | 74 mA |
| Wireless Protocol | Wi-Fi, Zigbee |
| Working Temperature | 0°C to 40°C |
| Working Humidity | 5%–90% RH (non-condensing) |
| Size (without base) | 86.0 × 86.0 × 10.5 mm |
| Size (with base) | 86.0 × 86.0 × 36.2 mm |
Installation
Requirements
- Standard flush box compatible with panel dimensions
- Live, Neutral, Load wires
- Zigbee coordinator within range
Switch off the circuit breaker.
Mount the backplate/box to the wall.
Connect wiring per the channel labels on the panel.
Snap or screw the panel into position.
Restore power and pair with your Zigbee coordinator.
Configure scenes and buttons in the Smartify or Home Assistant UI.
Notes
- Touch panels must be grounded to avoid false triggers.
- Ensure the panel is flush against the wall for reliable capacitive touch detection.
Ordering
| SRP (incl. GST) | ₹33,000 |
| GST Rate | 18% |
| HSN Code | 85371000 |
