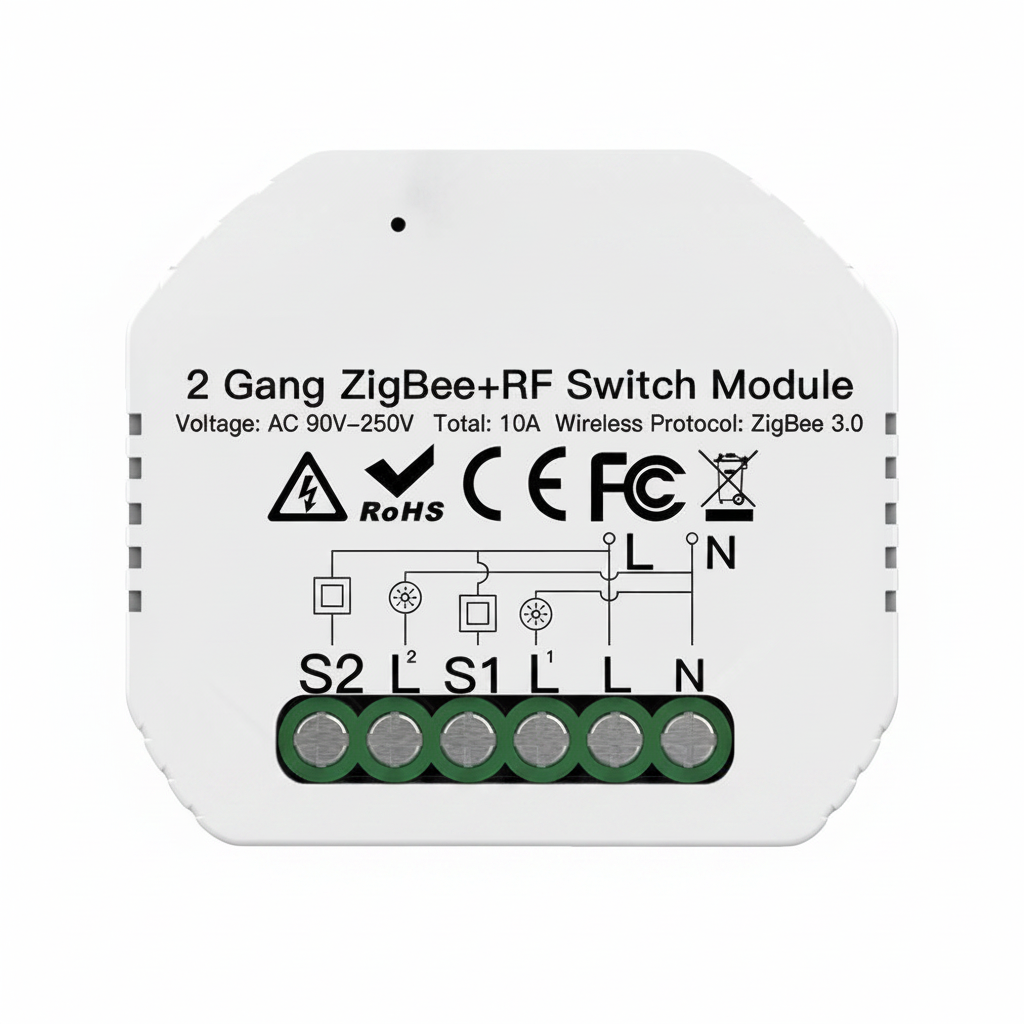

2 Channel Zigbee Retrofit Relay
A dual-channel Zigbee switching relay that converts two standard mechanical switches into smart switches simultaneously — without replacing any existing hardware.
Protocol: Zigbee 3.0 · Type: Switching Relay · SRP: ₹3,250
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A dual-channel Zigbee switching relay that converts two standard mechanical switches into smart switches simultaneously — without replacing any existing hardware.
Each channel operates independently with direct load switching up to 4A. For loads above 4A per channel, an external relay, SSR, or contactor is required. Installs behind existing switches in a flush box or on DIN rail. Communicates natively over Zigbee 3.0 with Home Assistant, and integrates with Matter and Apple HomeKit via a compatible hub.
Specifications
| Specification | Value |
|---|---|
| Channels | 2 (independent) |
| Max Switching | 5A per channel |
| Recommended Load | Up to 4A per channel |
| Installation | Flush box or DIN rail |
| Compatibility | Home Assistant (native), Matter & Apple HomeKit (via hub) |
| Voltage | 90–250V AC, 50/60Hz |
| Current | Total 10A |
| Wireless Protocol | Zigbee 3.0 |
| Operating Temperature | -10°C to +65°C |
| Case Temperature (Tc) | +80°C Max |
| Operating Range | ≤70m |
| Dimensions | 40 × 40 × 18 mm |
| IP Rating | IP20 |
| Frequency Band | 2.405–2.480 GHz |
| Max Radio Transmit Power | <+10 dBm |
| Installation Type | Behind Switch / DIN Rail |
Installation
Requirements
- Existing wall switch in a flush box (≥ 60mm depth recommended)
- Live, Neutral, and Load wires in the flush box
- Zigbee coordinator within range
Turn off the circuit breaker for the affected circuit.
Remove the existing switch plate. The retrofit module sits behind the existing switch — no visible hardware change.
Connect wiring:
- Live → L input
- Neutral → N input
- Load → load output(s)
Fit the module into the flush box. Use DIN rail adapters for panel board installation.
Replace the switch plate.
Restore power. The device will blink — ready to pair.
Pair with your Zigbee coordinator.
Load Limits
- Standard relay: up to 4A direct. For 4–10A, use an external relay/SSR/contactor.
- 40A relay: rated for direct high-current switching. Proper cable sizing and circuit protection mandatory.
- Dimmer modules: resistive and leading-edge dimmable loads only. Not suitable for ceiling fans.
Shutter Module
The shutter module controls motorised curtains, blinds, and shutters:
- M1, M2 → motor up/down terminals
- Configure travel time in your coordinator for accurate position reporting.
Ordering
| SRP (incl. GST) | ₹3,250 |
| GST Rate | 18% |
| HSN Code | 85365090 |
