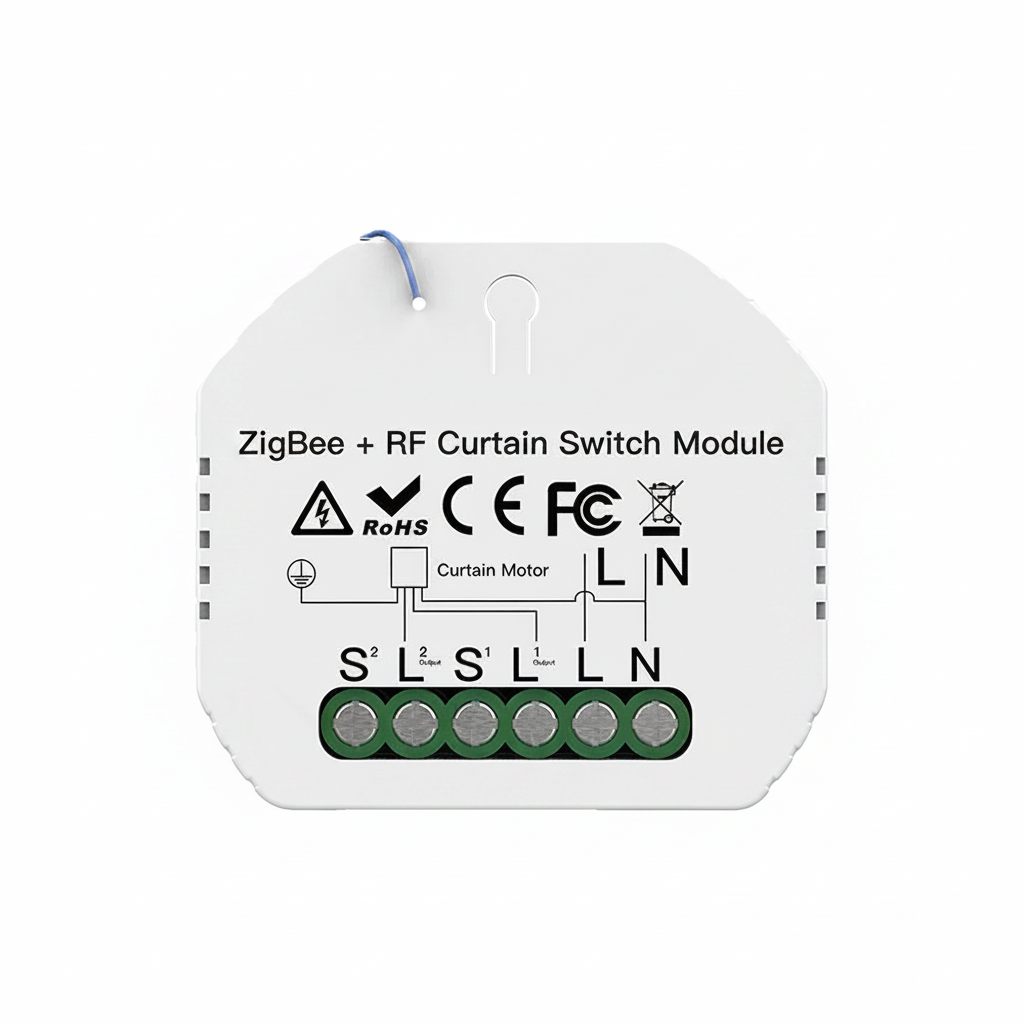

Zigbee Shutter Module
A single-channel Zigbee shutter controller designed for AC motorized curtains, roller blinds, and shutters. Provides interlocked directional outputs — Up, Down, and Stop — eliminating any possibility of simultaneous conflicting signals to the motor.
Protocol: Zigbee 3.0 · Type: Shutter / Curtain Motor Controller · SRP: ₹3,000
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A single-channel Zigbee shutter controller designed for AC motorized curtains, roller blinds, and shutters. Provides interlocked directional outputs — Up, Down, and Stop — eliminating any possibility of simultaneous conflicting signals to the motor.
Installs behind the existing wall switch in a flush box or on DIN rail. Communicates natively over Zigbee 3.0 with full Home Assistant support, and integrates with Matter and Apple HomeKit via a compatible hub.
Specifications
| Specification | Value |
|---|---|
| Channels | 1 motor channel |
| Max Switching | 2A |
| Recommended Load | AC motor loads only |
| Installation | Flush box or DIN rail |
| Compatibility | Home Assistant (native), Matter & Apple HomeKit (via hub) |
| Voltage | 90–250V AC, 50/60Hz |
| Current | 2A |
| Max Power | 500W (250V) |
| Wireless Protocol | Zigbee 3.0 |
| Operating Temperature | -10°C to +40°C |
| Case Temperature (Tc) | +80°C Max |
| Operating Range | ≤200m |
| Dimensions | 52 × 47 × 18 mm |
| IP Rating | IP20 |
| Installation Type | Behind Switch / DIN Rail |
Installation
Requirements
- Existing wall switch in a flush box (≥ 60mm depth recommended)
- Live, Neutral, and Load wires in the flush box
- Zigbee coordinator within range
Turn off the circuit breaker for the affected circuit.
Remove the existing switch plate. The retrofit module sits behind the existing switch — no visible hardware change.
Connect wiring:
- Live → L input
- Neutral → N input
- Load → load output(s)
Fit the module into the flush box. Use DIN rail adapters for panel board installation.
Replace the switch plate.
Restore power. The device will blink — ready to pair.
Pair with your Zigbee coordinator.
Load Limits
- Standard relay: up to 4A direct. For 4–10A, use an external relay/SSR/contactor.
- 40A relay: rated for direct high-current switching. Proper cable sizing and circuit protection mandatory.
- Dimmer modules: resistive and leading-edge dimmable loads only. Not suitable for ceiling fans.
Shutter Module
The shutter module controls motorised curtains, blinds, and shutters:
- M1, M2 → motor up/down terminals
- Configure travel time in your coordinator for accurate position reporting.
Ordering
| SRP (incl. GST) | ₹3,000 |
| GST Rate | 18% |
| HSN Code | 85365090 |
