TAC SH

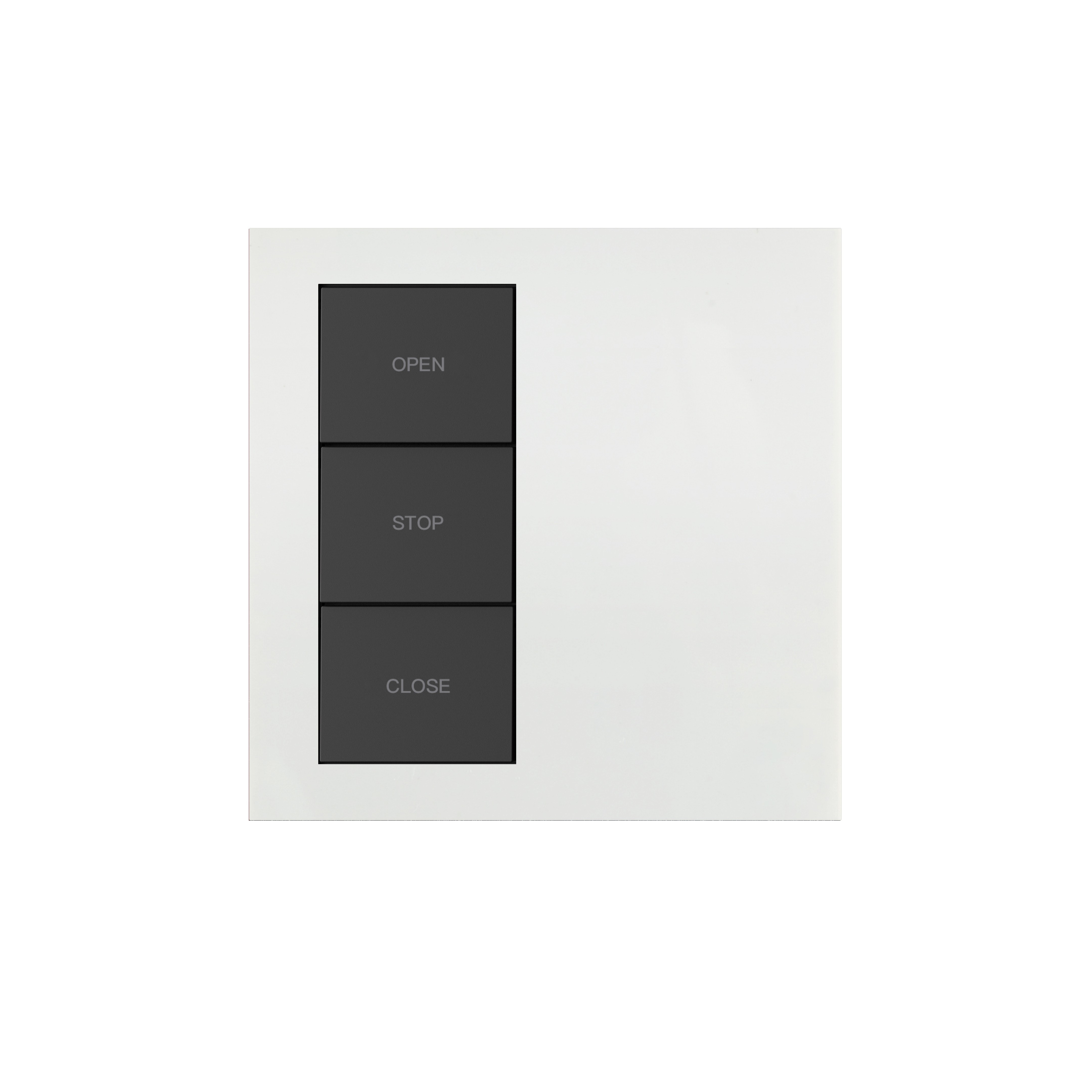

A 3-button Zigbee shutter and curtain control switch with dedicated Open, Close, and Stop functions for AC motorized blinds and curtains up to 150W.
Protocol: Zigbee 3.0 · Type: Zigbee Shutter / Curtain Control Switch · SRP: ₹17,750
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A 3-button Zigbee shutter and curtain control switch with dedicated Open, Close, and Stop functions for AC motorized blinds and curtains up to 150W.
Backlit with customizable icons. Available in PP or anti-glare glass in black, white, or gold.
Specifications
| Specification | Value |
|---|---|
| Channels | 1 (Open / Close / Stop) |
| Max Switching | 150W motor |
| Recommended Load | AC curtain/blind motor up to 150W |
| Installation | Wall-mounted |
| Compatibility | Zigbee automation platforms |
| Input Voltage | 110–240V AC 50/60Hz |
| Communication Protocol | Zigbee |
| Product Size | 86 × 86 × 10.5 mm |
| Bottom Shell Depth | 28mm |
| Working Temperature | -10°C to +60°C |
| Working Humidity | ≤95% RH (non-condensing) |
Installation
Requirements
- Existing wall switch in a flush box (≥ 60mm depth recommended)
- Live, Neutral, and Load wires in the flush box
- Zigbee coordinator within range
Turn off the circuit breaker for the affected circuit.
Remove the existing switch plate. The retrofit module sits behind the existing switch — no visible hardware change.
Connect wiring:
- Live → L input
- Neutral → N input
- Load → load output(s)
Fit the module into the flush box. Use DIN rail adapters for panel board installation.
Replace the switch plate.
Restore power. The device will blink — ready to pair.
Pair with your Zigbee coordinator.
Load Limits
- Standard relay: up to 4A direct. For 4–10A, use an external relay/SSR/contactor.
- 40A relay: rated for direct high-current switching. Proper cable sizing and circuit protection mandatory.
- Dimmer modules: resistive and leading-edge dimmable loads only. Not suitable for ceiling fans.
Shutter Module
The shutter module controls motorised curtains, blinds, and shutters:
- M1, M2 → motor up/down terminals
- Configure travel time in your coordinator for accurate position reporting.
Ordering
| SRP (incl. GST) | ₹17,750 |
| GST Rate | 18% |
| HSN Code | 85369090 |
