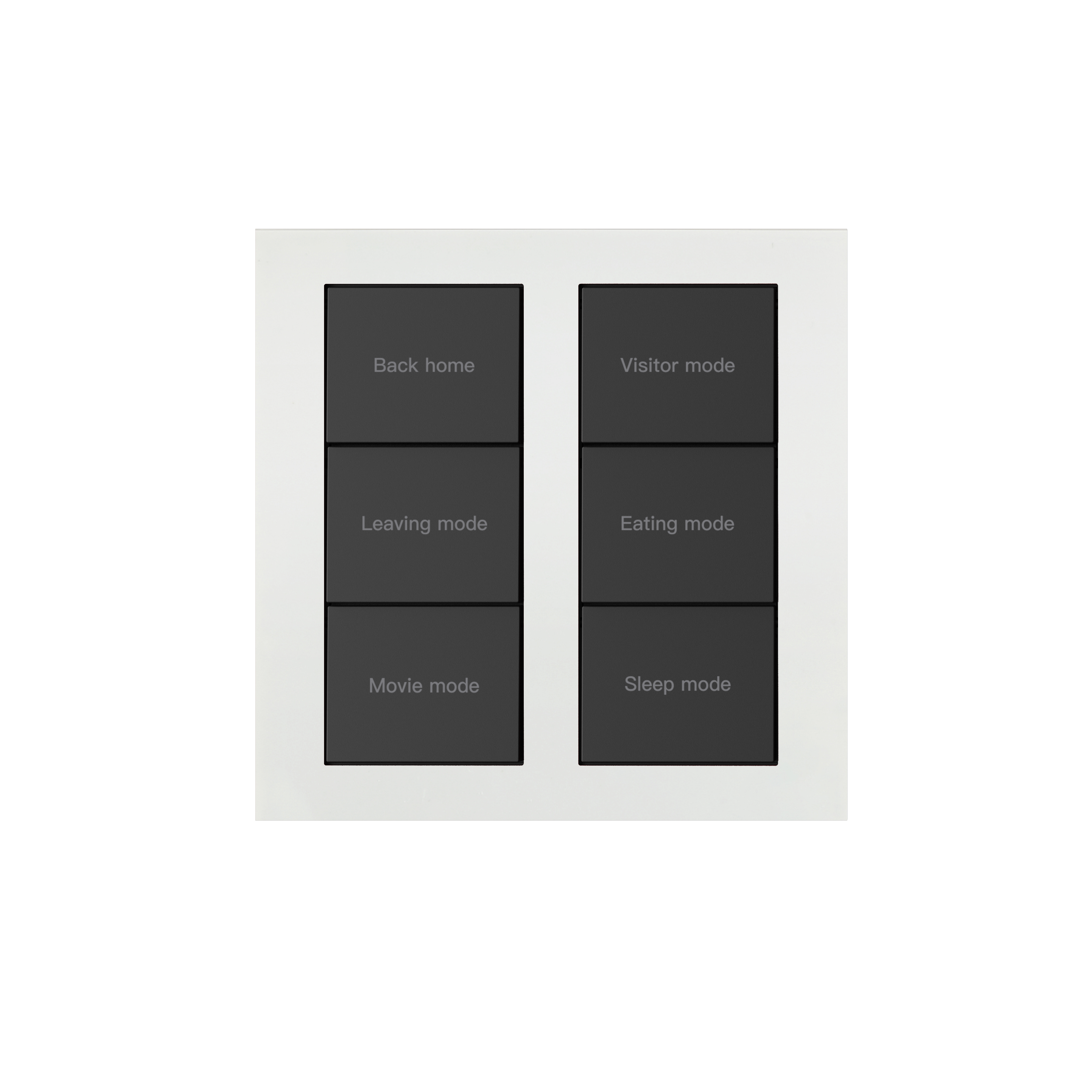

TAC 6
A 6-button Zigbee scene control switch for triggering scenes and automations within a Zigbee ecosystem. Contains no relays and does not switch electrical loads directly.
Protocol: Zigbee 3.0 · Type: Zigbee Scene Control Switch · SRP: ₹21,250
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A 6-button Zigbee scene control switch for triggering scenes and automations within a Zigbee ecosystem. Contains no relays and does not switch electrical loads directly.
Each button is independently configurable for scene or automation triggers. Backlit with customizable icons. Available in PP or anti-glare glass in black, white, or gold.
Specifications
| Specification | Value |
|---|---|
| Channels | 0 (no relay) |
| Installation | Wall-mounted |
| Compatibility | Zigbee automation platforms |
| Input Voltage | 110–240V AC 50/60Hz |
| Communication Protocol | Zigbee |
| Product Size | 86 × 86 × 10.5 mm |
| Bottom Shell Depth | 28mm |
| Working Temperature | -10°C to +60°C |
| Working Humidity | ≤95% RH (non-condensing) |
Installation
Requirements
- Standard 2-module or 4-module flush box
- Live, Neutral, and Load wires available at the switch location
- Zigbee coordinator (gateway) within range
Turn off the circuit breaker for the circuit you're working on.
Remove the existing switch plate and pull out the wires.
Connect Live (L) → L terminal, Neutral (N) → N terminal, Load → the load terminal(s).
Tuck the module into the flush box and fit the TAC switch plate.
Restore power. The LED indicator will blink — the device is ready to pair.
Open your Zigbee coordinator app (Home Assistant, SmartThings, etc.) and put it in pairing mode.
Press and hold the switch for 5 seconds until the LED blinks rapidly — pairing begins.
Wiring Notes
- Neutral wire is required for all TAC switches.
- Maximum load per channel: see product specifications.
- For ceiling fans, use the TAC F (fan speed controller variant).
Ordering
| SRP (incl. GST) | ₹21,250 |
| GST Rate | 18% |
| HSN Code | 85369090 |
