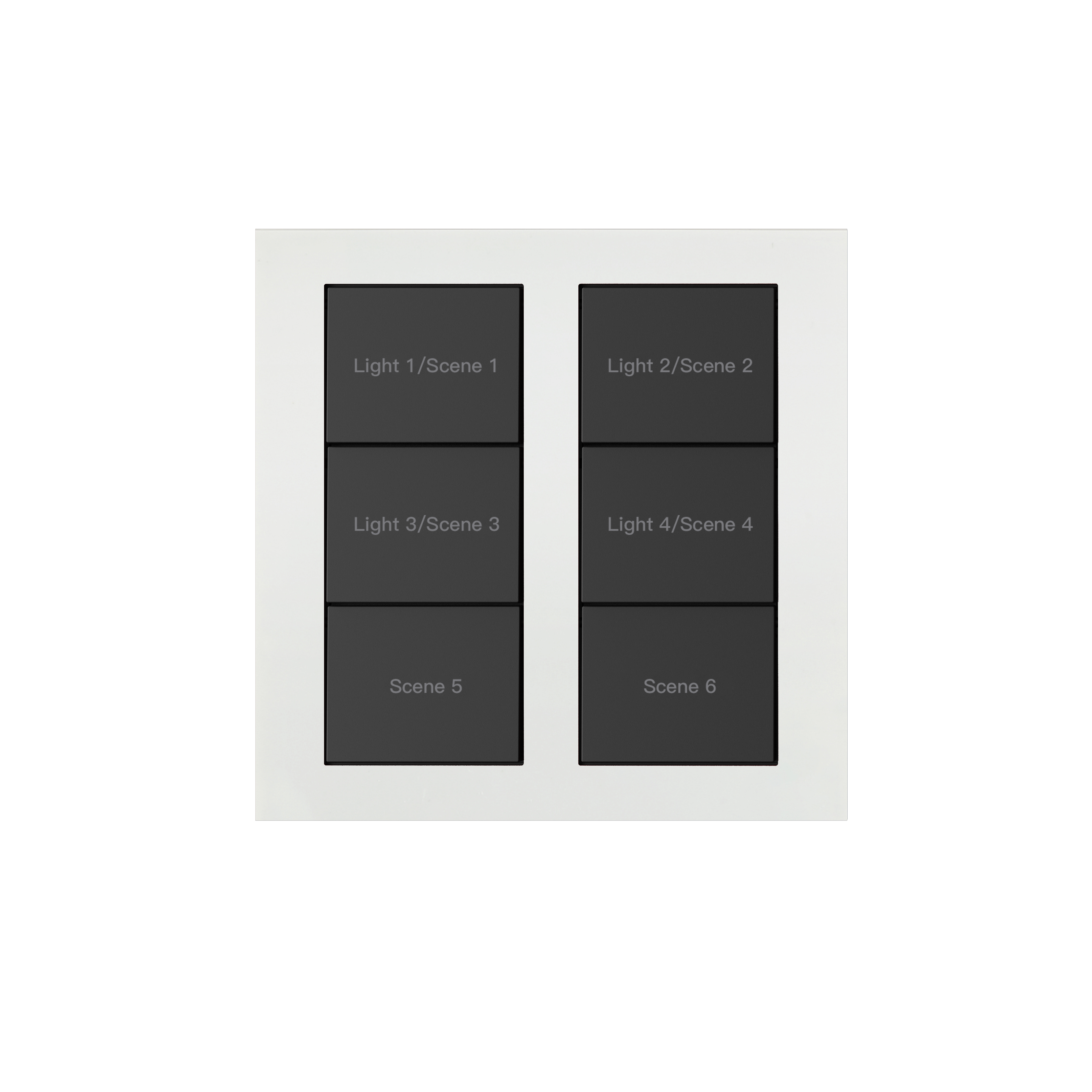

TAC 6+
A 6-button Zigbee smart switch with 4 load control buttons and 2 dedicated scene trigger buttons. Combines direct load switching with scene control on a single switch face.
Protocol: Zigbee 3.0 · Type: Zigbee Smart Switch with Scene Control · SRP: ₹21,250
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A 6-button Zigbee smart switch with 4 load control buttons and 2 dedicated scene trigger buttons. Combines direct load switching with scene control on a single switch face.
The 4 load buttons share a 10A relay capacity; the 2 scene buttons contain no relay and trigger automations only. Available in PP or anti-glare glass in black, white, or gold.
Specifications
| Specification | Value |
|---|---|
| Channels | 4 load + 2 scene |
| Max Switching | 10A total (shared across 4 load buttons) |
| Recommended Load | Up to 2A per load |
| Installation | Wall-mounted |
| Compatibility | Zigbee automation platforms |
| Input Voltage | 110–240V AC 50/60Hz |
| Communication Protocol | Zigbee |
| Product Size | 86 × 86 × 10.5 mm |
| Bottom Shell Depth | 28mm |
| Working Temperature | -10°C to +60°C |
| Working Humidity | ≤95% RH (non-condensing) |
Installation
Requirements
- Standard 2-module or 4-module flush box
- Live, Neutral, and Load wires available at the switch location
- Zigbee coordinator (gateway) within range
Turn off the circuit breaker for the circuit you're working on.
Remove the existing switch plate and pull out the wires.
Connect Live (L) → L terminal, Neutral (N) → N terminal, Load → the load terminal(s).
Tuck the module into the flush box and fit the TAC switch plate.
Restore power. The LED indicator will blink — the device is ready to pair.
Open your Zigbee coordinator app (Home Assistant, SmartThings, etc.) and put it in pairing mode.
Press and hold the switch for 5 seconds until the LED blinks rapidly — pairing begins.
Wiring Notes
- Neutral wire is required for all TAC switches.
- Maximum load per channel: see product specifications.
- For ceiling fans, use the TAC F (fan speed controller variant).
Ordering
| SRP (incl. GST) | ₹21,250 |
| GST Rate | 18% |
| HSN Code | 85369090 |
