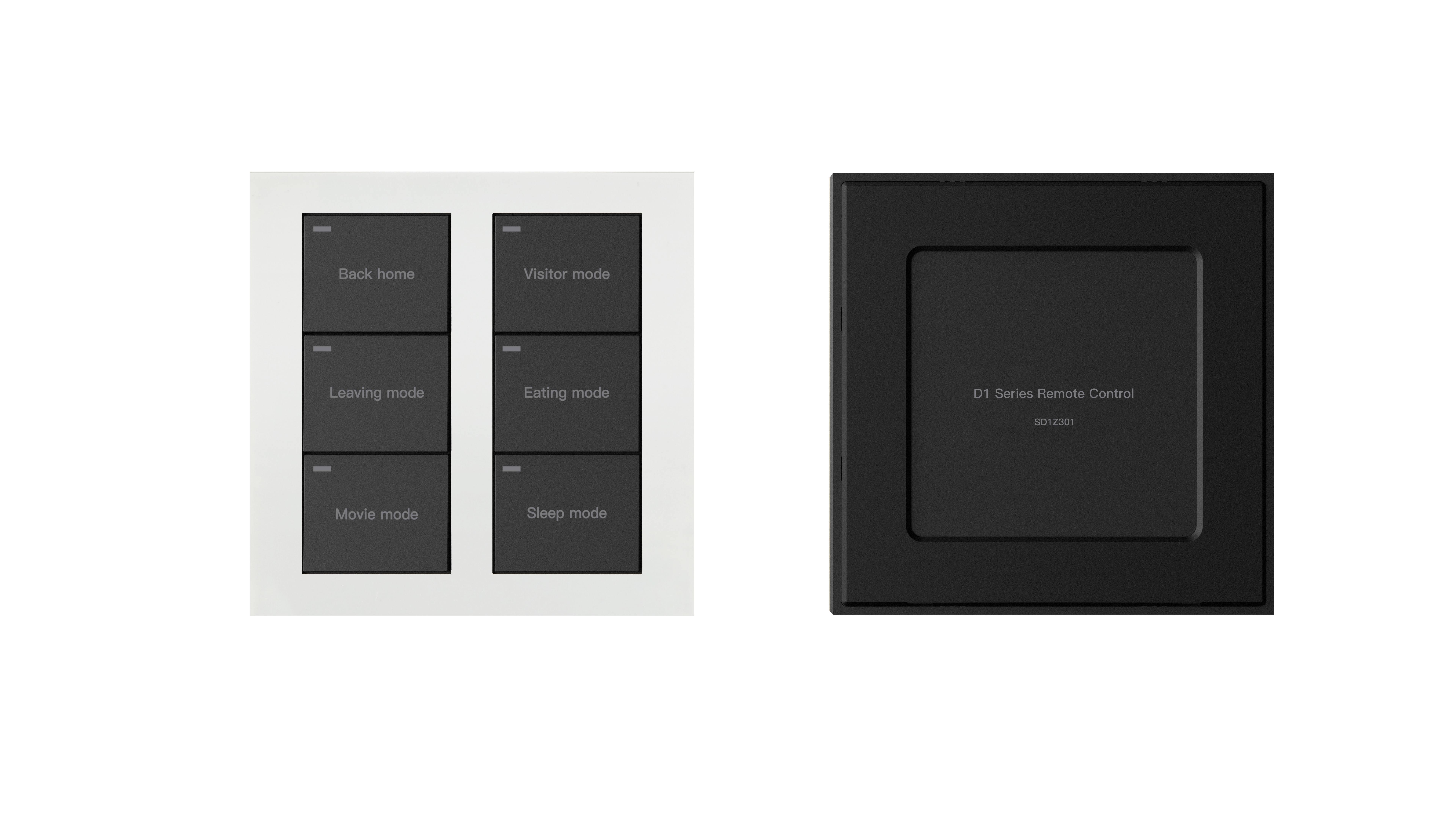

TAC SS
A battery-powered Zigbee scene switch with 6 configurable buttons for wireless scene and automation triggering — no wiring required.
Protocol: Zigbee 3.0 · Type: Zigbee Scene Control Switch (Battery) · SRP: ₹21,250
Works with: Amazon Alexa · Google Home · Siri / Apple HomeKit
Description
A battery-powered Zigbee scene switch with 6 configurable buttons for wireless scene and automation triggering — no wiring required.
Can be wall-mounted or surface-mounted at any location without electrical installation. Backlit with customizable icons. Available in PP or anti-glare glass in black, white, or gold.
Specifications
| Specification | Value |
|---|---|
| Channels | 0 (no relay) |
| Installation | Wall-mounted or surface-mounted (wireless, no wiring required) |
| Compatibility | Zigbee automation platforms |
| Input | 3V (2 × CR2032 batteries) |
| Communication Protocol | Zigbee |
| Product Size | 86 × 86 × 12 mm |
| Working Temperature | -10°C to +60°C |
| Working Humidity | ≤95% RH (non-condensing) |
Installation
Requirements
- Standard 2-module or 4-module flush box
- Live, Neutral, and Load wires available at the switch location
- Zigbee coordinator (gateway) within range
Turn off the circuit breaker for the circuit you're working on.
Remove the existing switch plate and pull out the wires.
Connect Live (L) → L terminal, Neutral (N) → N terminal, Load → the load terminal(s).
Tuck the module into the flush box and fit the TAC switch plate.
Restore power. The LED indicator will blink — the device is ready to pair.
Open your Zigbee coordinator app (Home Assistant, SmartThings, etc.) and put it in pairing mode.
Press and hold the switch for 5 seconds until the LED blinks rapidly — pairing begins.
Wiring Notes
- Neutral wire is required for all TAC switches.
- Maximum load per channel: see product specifications.
- For ceiling fans, use the TAC F (fan speed controller variant).
Ordering
| SRP (incl. GST) | ₹21,250 |
| GST Rate | 18% |
| HSN Code | 85369090 |
